BITSURFR PRO ISA modem/telephone/ISDN Settings and Configuration

Card Type	ISDN TA
Chip Set	Unidentified
I/O Options	Analog adapters (2)
Transfer Rate	56Kbps x 2/64Kbps x 2
Data Bus	16-bit ISA
ISDN Protocol	AIMux, PPP, V.120
Switch Type	5ESS, DMS-100, NI-1
Card Size	Full-height, unidentified length

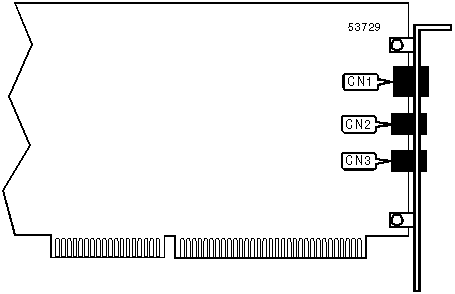

CONNECTIONS
Function	Label	Function	Label
ISDN U interface	CN1	Analog adapter 2	CN3
Analog adapter 1	CN2

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, A/

A, E, H, O, V, W, X, Z

&F, &S, &W, &Y, &Z

Extended AT Commands

\Q

S-Registers

S0, S1, S2, S3, S4, S5, S7, S10, S12, S18, S25

Note:See MHI help file for complete information.

AUTHENTICATION PROTOCOL
Type:		Configuration
	Format:	AT [cmds] @M2= x [cmds]
	Description:	Selects whether the TA will use an authentication protocol.
	Command	Function
»	@M2=N	TA will not use authentication protocol.
	@M2=P	TA will use PAP authentication protocol.

COMMAND SET
Type:		Configuration
	Format:	AT [cmds] @P1= n [cmds]
	Description:	Selects whether the TA will use the AT command set.
	Command	Function
»	@P1=A	AT command set enabled.
	@P1=N	Command set disabled

COMMAND TARGET
Type:		Immediate
	Format:	AT [cmds] >C n [cmds]
	Description:	Selects which I/O interface the issued commands will target.
	Command	Function
»	>C0	Issued commands will affect the COM port interface.
	>C1	Issued commands will affect programmed I/O port 1.
	>C2	Issued commands will affect programmed I/O port 2.
	>C3	Issued commands will affect programmed I/O port 3.

DTR DIALING DELAY
Type:	Configuration
Format:	AT [cmds] &L2= n [cmds]
Default:	8
Range:	1 - 255
Unit:	1 second
Description:	Sets the amount of time the TA will wait between DTR dialing attempts.
