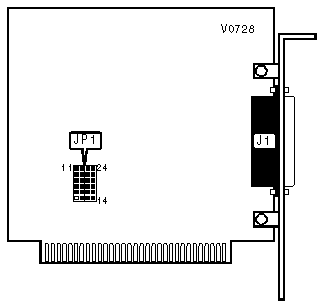

PARALLEL PRINTER CARD IO card Settings and Configuration






UNIDENTIFIED

PARALLEL PRINTER CARD

Card Type

Parallel card

Chipset Controller

Unidentified

I/O Options

Parallel port

Maximum Dram

N/A

CONNECTIONS

Purpose

Location

Parallel port

J1

ADDRESS SELECT

Address

JP1

278h

Pins 15 & 16, 17 & 18, 21 & 22 closed

378h

Pins 15 & 16, 17 & 18, 23 & 24 closed

3BCh

Pins 13 & 14, 19 & 20, 23 & 24 closed

FACTORY CONFIGURED-DO NOT ALTER

Jumper

Setting

JP1 pins 1 & 2

Open

JP1 pins 3 & 4

Closed

JP1 pins 5 & 6

Open

JP1 pins 7 & 8

Closed

JP1 pins 9 & 10

Open

JP1 pins 11 & 12

Closed
