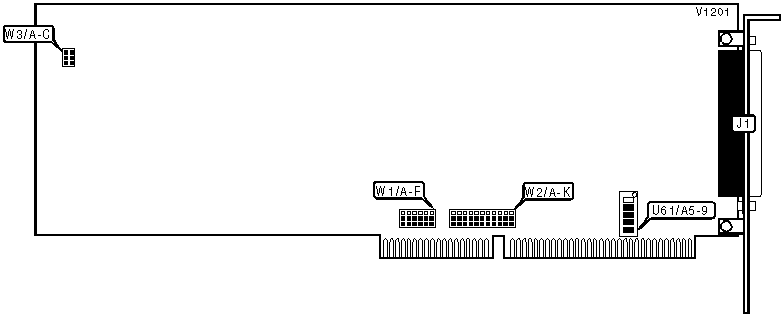

AT-DIO-32F IO card Settings and Configuration

NATIONAL INSTRUMENTS

AT-DIO-32F

Card Type
Parallel & Digital I/O card
Chipset Controller
Unidentified
I/O Options
32 lines of digital I/O (four 8-bit ports)
Maximum DRAM
N/A

CONNECTIONS
Purpose
Location
50-pin I/O interface connector
J1

BASE I/O ADDRESS SELECTION
Address
U61/A5
U61/A6
U61/A7
U61/A8
U61/A9
»
240h
On
Off
On
On
Off

000h
On
On
On
On
On

020h
Off
On
On
On
On

040h
On
Off
On
On
On

060h
Off
Off
On
On
On

080h
On
On
Off
On
On

360h
Off
Off
On
Off
Off

380h
On
On
Off
Off
Off

3A0h
Off
On
Off
Off
Off

3C0h
On
Off
Off
Off
Off

3E0h
Off
Off
Off
Off
Off
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. Switch A9 is the Most Significant Bit and switch A5 is the Least Significant Bit. The switches have the following decimal values: switch A9=512, A8=256, A7=128, A6=64, A5=32. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

DMA CHANNEL SELECTION (GROUP 1)
DMA
W1/A
W1/B
W1/C
W1/D
W1/E
W1/F
»
5
Pins 1 & 2
Pins 1 & 2
Open
Open
Open
Open

6
Open
Open
Pins 1 & 2
Pins 1 & 2
Open
Open

7
Open
Open
Open
Open
Pins 1 & 2
Pins 1 & 2
Note: Pins designated are in the closed position.

DMA CHANNEL SELECTION (GROUP 2)
DMA
W1/A
W1/B
W1/C
W1/D
W1/E
W1/F
»
6
Open
Open
Pins 2 & 3
Pins 2 & 3
Open
Open

5
Pins 2 & 3
Pins 2 & 3
Open
Open
Open
Open

7
Open
Open
Open
Open
Pins 2 & 3
Pins 2 & 3
Note: Pins designated are in the closed position.

INTERRUPT SELECTION (INTR 1)
IRQ
W2/A
W2/B
W2/C
W2/D
W2/E
W2/F
W2/G
W2/H
W2/I
W2/J
W2/K
»
11
Open
Open
Open
Open
Open
Open
Open
1 & 2
Open
Open
Open

2/9
Open
Open
Open
Open
Open
1 & 2
Open
Open
Open
Open
Open

3
1 & 2
Open
Open
Open
Open
Open
Open
Open
Open
Open
Open

4
Open
1 & 2
Open
Open
Open
Open
Open
Open
Open
Open
Open

5
Open
Open
1 & 2
Open
Open
Open
Open
Open
Open
Open
Open

6
Open
Open
Open
1 & 2
Open
Open
Open
Open
Open
Open
Open

7
Open
Open
Open
Open
1 & 2
Open
Open
Open
Open
Open
Open

10
Open
Open
Open
Open
Open
Open
1 & 2
Open
Open
Open
Open

12
Open
Open
Open
Open
Open
Open
Open
Open
1 & 2
Open
Open

14
Open
Open
Open
Open
Open
Open
Open
Open
Open
1 & 2
Open

15
Open
Open
Open
Open
Open
Open
Open
Open
Open
Open
1 & 2
Note: Pins designated are in the closed position.

INTERRUPT SELECTION (INTR 2)
IRQ
W2/A
W2/B
W2/C
W2/D
W2/E
W2/F
W2/G
W2/H
W2/I
W2/J
W2/K
»
12
Open
Open
Open
Open
Open
Open
Open
Open
2 & 3
Open
Open

2/9
Open
Open
Open
Open
Open
2 & 3
Open
Open
Open
Open
Open

3
2 & 3
Open
Open
Open
Open
Open
Open
Open
Open
Open
Open

4
Open
2 & 3
Open
Open
Open
Open
Open
Open
Open
Open
Open

5
Open
Open
2 & 3
Open
Open
Open
Open
Open
Open
Open
Open

6
Open
Open
Open
2 & 3
Open
Open
Open
Open
Open
Open
Open

7
Open
Open
Open
Open
2 & 3
Open
Open
Open
Open
Open
Open

10
Open
Open
Open
Open
Open
Open
2 & 3
Open
Open
Open
Open

11
Open
Open
Open
Open
Open
Open
Open
2 & 3
Open
Open
Open

14
Open
Open
Open
Open
Open
Open
Open
Open
Open
2 & 3
Open

15
Open
Open
Open
Open
Open
Open
Open
Open
Open
Open
2 & 3
Note: Pins designated are in the closed position.

RTSI BUS CLOCK CONFIGURATION
Setting
W3/A
W3/B
W3/C
»
Use local oscillator board signal
Closed
Closed
Open

Receive the RTSI bus signal
Closed
Open
Closed

Drive RTSI bus & board/OSC
Open
Closed
Closed
