NATIONAL INSTRUMENTS
AT-A2150
Card Type | Dynamic signal acquisition converter |
Chipset Controller | Unidentified |
I/O Options | Analog input, analog output |
Maximum DRAM | N/A |

CONNECTIONS | |||

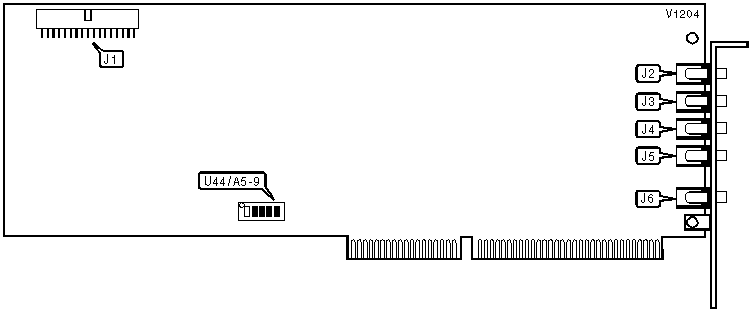

Purpose | Location | Purpose | Location |
34-pin interface connector | J1 | Analog input or output jack | J4 |
Analog input or output jack | J2 | Analog input or output jack | J5 |
Analog input or output jack | J3 | Analog input or output jack | J6 |
Note: Exact function of each jack is unidentified. | |||
BASE I/O ADDRESS SELECTION | ||||||
| Address | U44/A5 | U44/A6 | U44/A7 | U44/A8 | U44/A9 | |
| » | 120h | Off | On | On | Off | On |
| 000h | On | On | On | On | On | |
| 020h | Off | On | On | On | On | |
| 040h | On | Off | On | On | On | |
| 060h | Off | Off | On | On | On | |
| 080h | On | On | Off | On | On | |
| 360h | Off | Off | On | Off | Off | |
| 380h | On | On | Off | Off | Off | |
| 3A0h | Off | On | Off | Off | Off | |
| 3C0h | On | Off | Off | Off | Off | |
| 3E0h | Off | Off | Off | Off | Off | |
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. Switch A9 is the Most Significant Bit and switch A5 is the Least Significant Bit. The switches have the following decimal values: switch A9=512, A8=256, A7=128, A6=64, A5=32. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | ||||||
