AT-MIO-16F-5 IO card Settings and Configuration

Card Type	Analog to digital timing converter
Chipset Controller	Unidentified
I/O Options	Analog input, analog output, digital input, digital output
Maximum DRAM	N/A

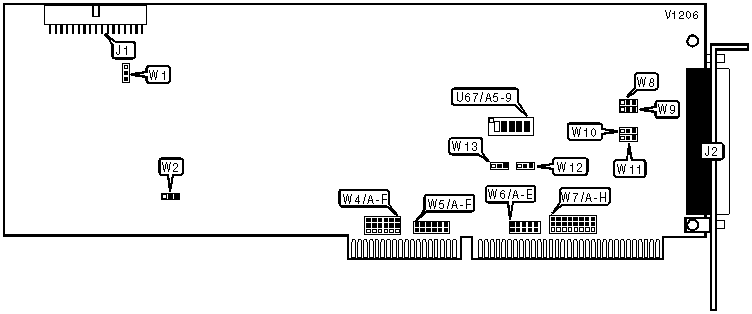

CONNECTIONS
Purpose	Location	Purpose	Location
34-pin interface connector	J1	50-pin I/O connector	J2

BASE I/O ADDRESS SELECTION
Address		U67/A5	U67/A6	U67/A7	U67/A8	U67/A9
»	220h	Off	On	On	On	Off
	000h	On	On	On	On	On
	020h	Off	On	On	On	On
	040h	On	Off	On	On	On
	060h	Off	Off	On	On	On
	080h	On	On	Off	On	On
	360h	Off	Off	On	Off	Off
	380h	On	On	Off	Off	Off
	3A0h	Off	On	Off	Off	Off
	3C0h	On	Off	Off	Off	Off
	3E0h	Off	Off	Off	Off	Off
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. Switch A9 is the Most Significant Bit and switch A5 is the Least Significant Bit. The switches have the following decimal values: switch A9=512, A8=256, A7=128, A6=64, A5=32. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

DMA CHANNEL SELECTION (DMA A)
DMA		W4/A	W4/B	W4/C	W4/D	W4/E	W4/F
»	6	Open	Open	Pins 1 & 2	Pins 1 & 2	Open	Open
	0	Open	Open	Open	Open	Open	Open
	1	Open	Open	Open	Open	Open	Open
	2	Open	Open	Open	Open	Open	Open
	3	Open	Open	Open	Open	Open	Open
	5	Pins 1& 2	Pins 1& 2	Open	Open	Open	Open
	7	Open	Open	Open	Open	Pins 1 & 2	Pins 1 & 2
	Disabled	Open	Open	Open	Open	Open	Open
Note: Pins designated are in the closed position.

DMA CHANNEL SELECTION (DMA A CON’T)
DMA		W7/A	W7/B	W7/C	W7/D	W7/E	W7/F	W7/G	W7/H
»	6	Open	Open	Open	Open	Open	Open	Open	Open
	0	1 & 2	1 & 2	Open	Open	Open	Open	Open	Open
	1	Open	Open	1 & 2	1 & 2	Open	Open	Open	Open
	2	Open	Open	Open	Open	1 & 2	1 & 2	Open	Open
	3	Open	Open	Open	Open	Open	Open	1 & 2	1 & 2
	5	Open	Open	Open	Open	Open	Open	Open	Open
	7	Open	Open	Open	Open	Open	Open	Open	Open
	Disabled	Open	Open	Open	Open	Open	Open	Open	Open
Note: Pins designated are in the closed position.

DMA CHANNEL SELECTION (DMA B)
DMA		W4/A	W4/B	W4/C	W4/D	W4/E	W4/F
»	7	Open	Open	Open	Open	Pins 2 & 3	Pins 2 & 3
	0	Open	Open	Open	Open	Open	Open
	1	Open	Open	Open	Open	Open	Open
	2	Open	Open	Open	Open	Open	Open
	3	Open	Open	Open	Open	Open	Open
	5	Pins 2 & 3	Pins 2 & 3	Open	Open	Open	Open
	6	Open	Open	Pins 2 & 3	Pins 2 & 3	Open	Open
	Disabled	Open	Open	Open	Open	Open	Open
Note: Pins designated are in the closed position.

DMA CHANNEL SELECTION (DMA B CON’T)
DMA		W7/A	W7/B	W7/C	W7/D	W7/E	W7/F	W7/G	W7/H
»	7	Open	Open	Open	Open	Open	Open	Open	Open
	0	2 & 3	2 & 3	Open	Open	Open	Open	Open	Open
	1	Open	Open	2 & 3	2 & 3	Open	Open	Open	Open
	2	Open	Open	Open	Open	2 & 3	2 & 3	Open	Open
	3	Open	Open	Open	Open	Open	Open	2 & 3	2 & 3
	5	Open	Open	Open	Open	Open	Open	Open	Open
	6	Open	Open	Open	Open	Open	Open	Open	Open
	Disabled	Open	Open	Open	Open	Open	Open	Open	Open
Note: Pins designated are in the closed position.

INTERRUPT SELECTION
IRQ		W5/A	W5/B	W5/C	W5/D	W5/E	W5/F
»	10	Open	Open	Open	Open	Closed	Open
	2/9	Open	Open	Open	Open	Open	Closed
	3	Open	Open	Open	Open	Open	Open
	4	Open	Open	Open	Open	Open	Open
	5	Open	Open	Open	Open	Open	Open
	6	Open	Open	Open	Open	Open	Open
	7	Open	Open	Open	Open	Open	Open
	11	Open	Open	Open	Closed	Open	Open
	12	Open	Open	Closed	Open	Open	Open
	14	Open	Closed	Open	Open	Open	Open
	15	Closed	Open	Open	Open	Open	Open
	Disabled	Open	Open	Open	Open	Open	Open
Note: Pins designated are in the closed position.

INTERRUPT SELECTION (CON’T)
IRQ		W6/A	W6/B	W6/C	W6/D	W6/E
»	10	Open	Open	Open	Open	Open
	2/9	Open	Open	Open	Open	Open
	3	Pins 1 & 2	Open	Open	Open	Open
	4	Open	Pins 1 & 2	Open	Open	Open
	5	Open	Open	Pins 1 & 2	Open	Open
	6	Open	Open	Open	Pins 1 & 2	Open
	7	Open	Open	Open	Open	Pins 1 & 2
	11	Open	Open	Open	Open	Open
	12	Open	Open	Open	Open	Open
	14	Open	Open	Open	Open	Open
	15	Open	Open	Open	Open	Open
	Disabled	Open	Open	Open	Open	Open
Note: Pins designated are in the closed position.

ANALOG OUTPUT CONFIGURATION
Type		W8 (Channel 1)	W11 (Channel 0)
»	Internal	Pins 1 & 2 closed	Pins 1 & 2 closed
	External	Pins 2 & 3 closed	Pins 2 & 3 closed

ANALOG OUTPUT POLARITY CONFIGURATION
Type		W9 (Channel 1)	W10 (Channel 0)
»	Bipolar	Pins 2 & 3 closed	Pins 2 & 3 closed
	Unipolar	Pins 1 & 2 closed	Pins 1 & 2 closed
Note: Use this table in conjunction with the table below to set jumpers for Bipolar & Unipolar mode selection.

BIPOLAR & UNIPOLAR OUTPUT MODE CONFIGURATION
Mode		W12 (Channel 1)	W13 (Channel 0)
»	Two’s Complement	Pins 1 & 2 closed	Pins 1 & 2 closed
	Straight Binary	Pins 2 & 3 closed	Pins 2 & 3 closed
Note: Bipolar can use both modes, while Unipolar uses the straight binary mode only.

RTSI BUS CLOCK CONFIGURATION
Setting		W1	W2
»	Use local oscillator board signal	Pins 2 & 3 closed	Pins 2 & 3 closed
	Receive the RTSI bus signal	Pins 1 & 2 closed	Pins 1 & 2 closed
	Drive RTSI bus & board/OSC	Pins 1 & 2 closed	Pins 2 & 3 closed
