MEGAPORT XP IO card Settings and Configuration
EQUINOX SYSTEMS, INC.
MEGAPORT XP
Card Type | Serial |
Chip Set | Unidentified |
I/O Options | Serial ports (24), daisy-chain connectors |
Data Bus | 16-bit ISA |

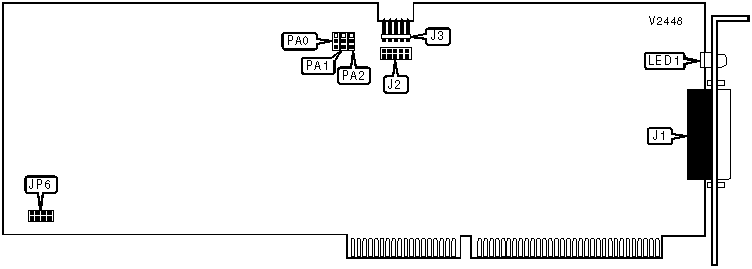

CONNECTIONS | |||
Function | Label | Function | Label |
Serial ports | J1 | Daisy-chain out | J3 |
Daisy-chain in | J2 | ||
Note:Standard DB-25 or RJ-45 serial ports are provided on up to three eight-port external modules. | |||
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | Factory configured - do not alter | JP6 | Unidentified |
| » | Card is installed in ISA slot | PA0 | Open |
Card is installed in EISA slot | PA0 | Pins 1 & 2 closed | |
| » | Factory configured - do not alter | PA1 | Open |
| » | Factory configured - do not alter | PA2 | Open |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Unidentified | On | Power is being supplied to the port |
LED1 | Unidentified | Off | Power is not being supplied to the port |
