MEGAPORT 8CS IO card Settings and Configuration






EQUINOX SYSTEMS, INC.

MEGAPORT 8CS

Card Type

Serial

Chip Set

Unidentified

I/O Options

Serial ports (8), daisy-chain connectors

Data Bus

16-bit ISA

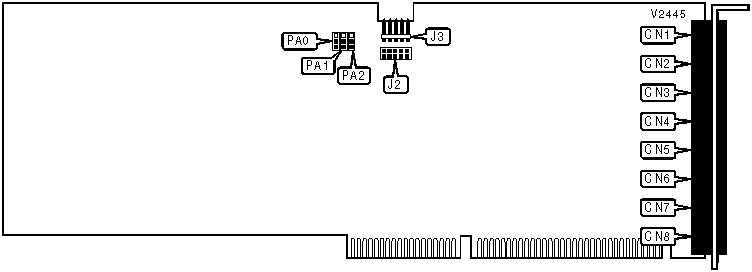

CONNECTIONS

Function

Label

Function

Label

Serial port 1

CN1

Serial port 6

CN6

Serial port 2

CN2

Serial port 7

CN7

Serial port 3

CN3

Serial port 8

CN8

Serial port 4

CN4

Daisy-chain in

J2

Serial port 5

CN5

Daisy-chain out

J3

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Card is installed in ISA slot

PA0

Open



Card is installed in EISA slot

PA0

Pins 1 & 2 closed

Factory configured - do not alter

PA1

Open

Factory configured - do not alter

PA2

Open
