MINI 2S1P CARD IO card Settings and Configuration

Card Type	Multi-I/O
Chipset/Controller	Unidentified
I/O Options	Parallel port, Serial ports (2)
Maximum DRAM	N/A

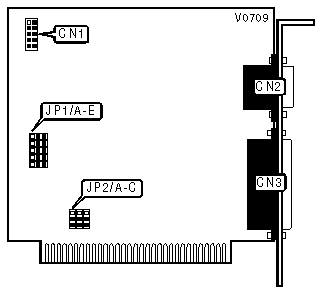

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 1 - internal	CN1	Parallel port	CN3
Serial port 2 - external	CN2

SERIAL PORT 1 CONFIGURATION - JP1
COM/Address	Jumper A	Jumper B	Jumper C	Jumper D
» COM1/3F8h	Pins 1 & 2 closed	Pins 1 & 2 open	Pins 1 & 2 open	Pins 1 & 2 open
COM2/2F8h	Pins 1 & 2 open	Pins 1 & 2 closed	Pins 1 & 2 open	Pins 1 & 2 open
COM3/3E8h	Pins 1 & 2 open	Pins 1 & 2 open	Pins 1 & 2 closed	Pins 1 & 2 open
COM4/2E8h	Pins 1 & 2 open	Pins 1 & 2 open	Pins 1 & 2 open	Pins 1 & 2 closed
Disabled	Pins 1 & 2 open	Pins 1 & 2 open	Pins 1 & 2 open	Pins 1 & 2 open

SERIAL PORT 2 CONFIGURATION - JP1
COM/Address	Jumper A	Jumper B	Jumper C	Jumper D
» COM2/2F8h	Pins 2 & 3 open	Pins 2 & 3 closed	Pins 2 & 3 open	Pins 2 & 3 open
COM1/3F8h	Pins 2 & 3 closed	Pins 2 & 3 open	Pins 2 & 3 open	Pins 2 & 3 open
COM3/3E8h	Pins 2 & 3 open	Pins 2 & 3 open	Pins 2 & 3 closed	Pins 2 & 3 open
COM4/2E8h	Pins 2 & 3 open	Pins 2 & 3 open	Pins 2 & 3 open	Pins 2 & 3 closed
Disabled	Pins 2 & 3 open	Pins 2 & 3 open	Pins 2 & 3 open	Pins 2 & 3 open

SERIAL PORTS 1 & 2 INTERRUPT SELECT - JP2
Port 1	Port 2	Jumper A	Jumper B
» IRQ4	IRQ3	Pins 2 & 3 closed	Pins 1 & 2 closed
IRQ3	IRQ4	Pins 1 & 2 closed	Pins 2 & 3 closed
IRQ3	Disabled	Pins 1 & 2 closed	All pins open
IRQ4	Disabled	Pins 2 & 3 closed	All pins open
Disabled	IRQ3	All pins open	Pins 1 & 2 closed
Disabled	IRQ4	All pins open	Pins 2 & 3 closed
Disabled	Disabled	All pins open	All pins open

PARALLEL PORT CONFIGURATION
LPT/Address	JP1/Jumper E
» LPT2/378h	Pins 2 & 3 closed
LPT3/278h	Pins 1 & 2 closed
Disabled	All pins open

PARALLEL PORT INTERRUPT SELECT
IRQ	JP2/Jumper C
» IRQ7	Pins 1 & 2 closed
IRQ5	Pins 2 & 3 closed
Disabled	All pins open
