SMC37C75 VER. 2 Hard Disk/Floppy Controller Settings and Configuration






VIVA COMPUTER COMPANY

SMC37C75 VER. 2

Data bus:

16-bit, ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB

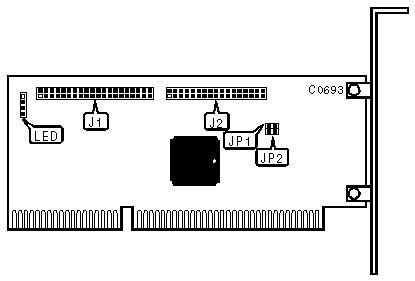

CONNECTIONS

Function

Location

40-pin IDE (AT) Interface connector

J1

34-pin control cable connector-floppy drive

J2

4-pin connector-drive active LED

LED

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Floppy drive interface - enabled

JP1

open



Floppy drive interface - disabled

JP1

closed

Hard drive interface - enabled

JP2

open



Hard drive interface - disabled

JP2

closed
