IDE-9 CARD Hard Disk/Floppy Controller Settings and Configuration
UNIDENTIFIED
IDE-9 CARD
Data Bus | 16-bit ISA |
Card Size | Third height, half length |
Hard Drives Supported | Two IDE(AT) devices |
Floppy Drives Supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

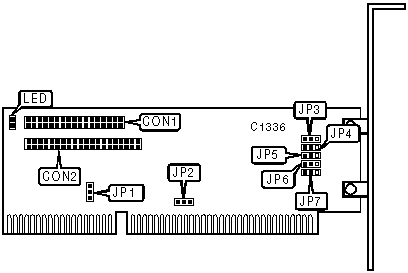

CONNECTIONS | |||
Function | Label | Function | Label |
34-pin cable connector - floppy drive | CON1 | 2-pin drive active LED | LED |
40-pin primary IDE(AT) connector | CON2 | ||
USER CONFIGURABLE SETTINGS | ||
Setting | Label | Position |
IRQ14 enabled | JP1 | Pins 2 & 3 closed |
IRQ14 disabled | JP1 | Pins 1 & 2 closed |
IDE IOCHRDY signal enabled | JP2 | Pins 2 & 3 closed |
IDE IOCHRDY signal disabled | JP2 | Pins 1 & 2 closed |
Factory configured - do not alter | JP3 | Pins 1 & 2 closed |
Floppy interface uses primary address | JP4 | Pins 1 & 2 closed |
Floppy interface uses secondary address | JP4 | Pins 2 & 3 closed |
Floppy interface enabled | JP5 | Pins 1 & 2 closed |
Floppy interface disabled | JP5 | Pins 2 & 3 closed |
IDE(AT) interface enabled | JP6 | Pins 1 & 2 closed |
IDE(AT) interface disabled | JP6 | Pins 2 & 3 closed |
IDE(AT) interface uses primary address | JP7 | Pins 1 & 2 closed |
IDE(AT) interface uses secondary address | JP7 | Pins 2 & 3 closed |
