S1365 (REV. 1.0) Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit PCI
Size:	Full-length, full-height card
Hard drive supported:	Up to twenty one SCSI Interface drives
Floppy drives supported:	None

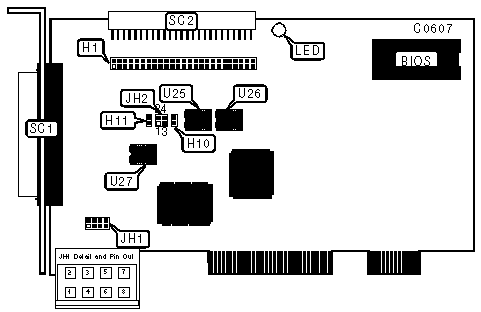

CONNECTIONS
Function	Location
50-pin connector - internal SCSI interface	H1
Drive activity LED	LED
50-pin connector - external SCSI 2 interface	SC1
68-pin connector - internal SCSI 3 interface	SC2
Active terminators	U25, U26
Active terminator for wide SCSI device	U27

USER CONFIGURABLE SETTINGS
Function	Location	Setting
On-board terminators disabled	JH2	pins 1 & 2 closed
On-board terminators enabled	JH2	pins 1 & 2 open
On-board wide portion terminator disabled	JH2	pins 3 & 4 closed
On-board wide portion terminator enabled	JH2	pins 3 & 4 open
Software used to enable/disable SCSI active terminator	H10	closed
Software program not used to control active terminator	H10	open
Software used to enable/disable SCSI wide terminator	H11	closed
Software program not used to control wide terminator	H11	open

PCI INTERRUPT LINE SELECTION JH1
Interrupt		Pins
»	PCI INTA	pins 1 & 2 closed
	PCI INTB	pins 3 & 4 closed
	PCI INTC	pins 5 & 6 closed
	PCI INTD	pins 7 & 8 closed
