IFSPVL (VER. 2B) Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit, VL-Bus
Size:	Three/quarter-length, full-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

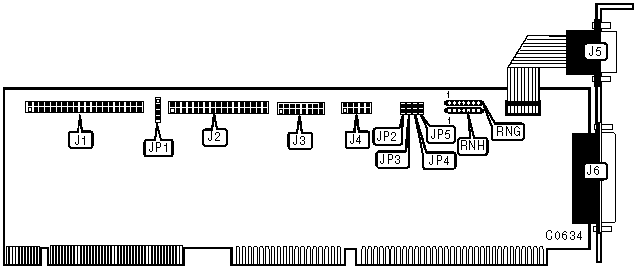

CONNECTIONS
Function	Location
40-pin IDE(AT) interface connector	J1
34-pin control cable connector - floppy drive	J2
16-pin game port - internal	J3
10-pin serial port (COM2/4) - internal	J4
9-pin serial port (COM1/3) - external	J5
25-pin parallel port (LPT1/2) - external	J6
4-pin connector - Drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IDE(AT) controller enabled	JP2	closed
»	IDE(AT) controller disabled	JP2	open
»	CPU is 386DX	JP3	open
»	CPU is 486 (SX, DX, DX2, Overdrive, 487SX, P24T)	JP3	closed
»	Floppy controller enabled	JP4	closed
»	Floppy controller disabled	JP4	open
»	Game port enabled	JP5	closed
»	Game port disabled	JP5	open
»	Parallel port (J6) is LPT1	RNG	pins 2-5 closed
»	Parallel port (J6) is LPT2	RNG	pins 1-4 closed
»	Parallel port disabled	RNG	pins 4-7 closed
Note: RNG is configured by installing a 4-pin resistor network over the corresponding pins.

SERIAL PORTS CONFIGURATIONS
Port 1 (J5)	Port 2 (J4)	RNH
COM1	COM2	pins 1-4 closed
COM1	disabled	pins 2-5 closed
disabled	COM2	pins 3-6 closed
disabled	disabled	pins 4-7 closed
Note: RNH is configured by installing a 4-pin resistor network over the corresponding pins.
