QLA 1042 Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
Hard Drives supported	Up to 30 SCSI-2 Fast/Wide devices or 6 Ultra SCSI devices
Floppy drives supported	None
Data Bus	32-bit PCI

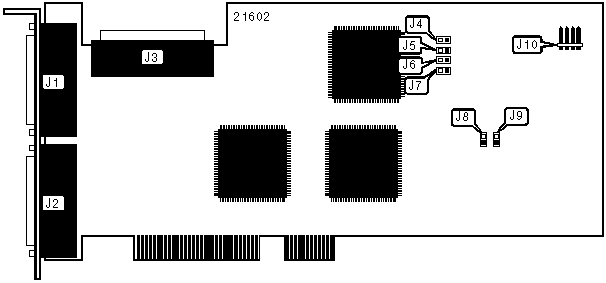

CONNECTIONS
Function	Label	Function	Label
68-pin SCSI connector - external	J1	68-pin SCSI connector - internal	J3
68-pin SCSI connector - external	J2	LED connector	J10

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter (BIOS bank)	J8	Closed
»	Factory configured - do not alter (BIOS bank)	J9	Closed

CHANNEL 1 TERMINATION SELECTION
Setting	J6	J7
High termination enabled	Closed	Open
Termination disabled	N/A	Closed
Note: Channel 1 uses connectors J1 & J3.

CHANNEL 2 TERMINATION SELECTION
Setting	J4	J5
High termination enabled	Closed	Open
Termination disabled	N/A	Closed
Note: Channel 2 uses connector J2.
