QLA 1240D Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
Hard Drives supported	Up to 30 SCSI-2 Fast/Wide/Differential devices,
Floppy drives supported	None
Data Bus	32-bit PCI

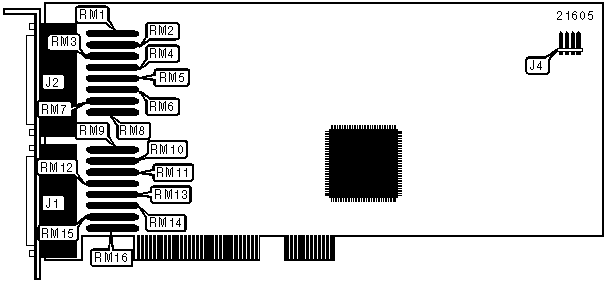

CONNECTIONS
Function	Label	Function	Label
68-pin SCSI connector - external	J1	LED connector	J4
68-pin SCSI connector - external	J2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter (BIOS bank)	JP1	Closed
»	Factory configured - do not alter (BIOS bank)	JP2	Closed

TERMINATION CONFIGURATION
Connector	Controller Position	Termination Required
J1	At end of SCSI bus	Internal host terminators RM9, RM11 & RM15 removed
J1	Not at end of SCSI bus	Internal host terminators RM9-RM6 removed
J2	At end of SCSI bus	Internal host terminators RM1, RM7 & RM8 removed
J2	Not at end of SCSI bus	Internal host terminators RM1-RM8 removed
