EIDE2300 PLUS (VER. 2) Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller card/Multi I/O card
I/O options	Serial ports (2), parallel port, game port
Hard Drives supported	Two EIDE drives, two IDE drives
Floppy drives supported	Two 1.2MB, 1.44MB or 2.88MB drives
Data Bus	32-bit VESA Local Bus
Card Size	Full-length, half-height card

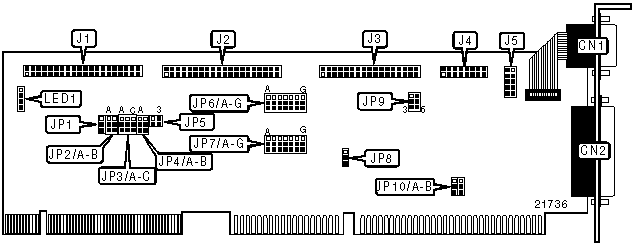

CONNECTIONS
Function	Location	Function	Location
9-pin serial port 1 - external	CN1	34-pin cable connector - floppy drive	J3
25-pin parallel port - external	CN2	16-pin game port	J4
40-pin primary EIDE(AT) connector	J1	10-pin serial port 2 - internal	J5
40-pin secondary IDE(AT) connector	J2	4-pin connector - drive active LED	LED1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	LBA disabled	JP1	Pins 1 & 2 closed
	LBA enabled	JP1	Pins 2 & 3 closed
»	Factory configured - do not alter	JP7/C	Unidentified
»	Factory configured - do not alter	JP7/D	Unidentified
»	Game port enabled	JP7/G	Pins 1 & 2 closed
	Game port disabled	JP7/G	Pins 2 & 3 closed
»	Parallel port ECP mode enabled	JP8	Pins 1 & 2 closed
	Parallel port ECP mode disabled	JP8	Pins 2 & 3 closed
»	Factory configured - do not alter	JP9	Pins 1 & 2, 4 & 5 closed

IRQ SELECTION
IRQ	JP5
EIDE 14, IDE 15	Pins 1 & 2, 3 & 4 closed
EIDE 15, IDE 14	Pins 1 & 3, 2 & 4 closed

EIDE CHANNEL SELECTION
Channel		JP2/A	JP2/B
»	Primary	Pins 1 & 2 closed	Pins 1 & 2 closed
	Secondary	Pins 1 & 2 closed	Pins 2 & 3 closed
	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed

PI0 IDE SPEED SELECTION
SPEED		JP4/A	JP4/B
	Mode 0	Pins 1 & 2 closed	Pins 1 & 2 closed
»	Mode 2	Pins 2 & 3 closed	Pins 1 & 2 closed
	Mode 4	Pins 1 & 2 closed	Pins 2 & 3 closed
	Mode 6	Pins 2 & 3 closed	Pins 2 & 3 closed

ECP MODE ADDRESS SELECTION
Mode		JP10/A	JP10/B
	DMA1	Pins 1 & 2 closed	Pins 1 & 2 closed
»	DMA3	Pins 2 & 3 closed	Pins 2 & 3 closed

SERIAL PORT 1 ADDRESS SELECTION
Setting		JP6/A	JP6/B
»	COM1 (3F8h)	Pins 1 & 2 closed	Pins 1 & 2 closed
	COM2 (2F8h)	Pins 1 & 2 closed	Pins 2 & 3 closed
	COM3 (3E8h)	Pins 2 & 3 closed	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed

SERIAL PORT 2 ADDRESS SELECTION
Setting		JP6/C	JP6/D
	COM1 (3F8h)	Pins 1 & 2 closed	Pins 2 & 3 closed
»	COM2 (2F8h)	Pins 1 & 2 closed	Pins 1 & 2 closed
	COM4 (2E8h)	Pins 2 & 3 closed	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed

BIOS ADDRESS SELECTION
Address		JP3/A	JP3/B	JP3/C
»	DC00h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	D8000h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	D4000h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	D0000h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	CC000h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	C8000h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	Reserved	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed

PARALLEL PORT INTERRUPT SELECTION
IRQ	JP6/E	JP6/F	JP6/G
IRQ5 (278h)	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
IRQ7 (278h)	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
IRQ5 (378h)	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
IRQ7 (378h)	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed	Open

PARALLEL PORT MODE SELECTION
Setting		JP7/A	JP7/B
»	ECP mode	Pins 1 & 2 closed	Pins 1 & 2 closed
	EPP mode	Pins 2 & 3 closed	Pins 1 & 2 closed
	Normal output only	Pins 2 & 3 closed	Pins 2 & 3 closed

FLOPPY CONTROLLER CHANNEL SELECTION
Channel		JP7/E	JP7/F
»	Primary	Pins 1 & 2 closed	Pins 1 & 2 closed
	Secondary	Pins 1 & 2 closed	Pins 2 & 3 closed
	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed
