EIDEMAX REV. B Hard Disk/Floppy Controller Settings and Configuration






PROMISE TECHNOLOGY, INC.

EIDEMAX REV. B

Data bus:

16-bit ISA

Size:

Half-length, half-height card

Hard drive supported:

Two EIDE (AT) Interface drives

Floppy drives supported:

None

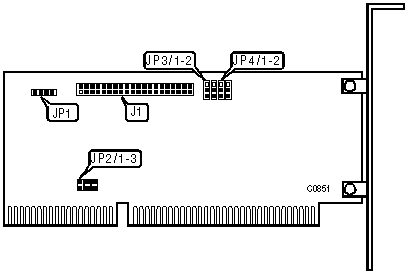

CONNECTIONS

Function

Location

40-pin EIDE(AT) interface connector

J1

4-pin connector - drive active LED

JP1

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Factory configured - do not alter

JP3/1

pins 1 & 2 closed

EIDEMAX is secondary IDE(AT) interface in system

JP3/2

pins 1 & 2 closed



EIDEMAX is primary IDE(AT) interface in system

JP3/2

pins 2 & 3 closed

INTERRUPT SELECTION

IRQ

JP2/1

JP2/2

JP2/3

15

closed

open

open



12

open

open

closed



14

open

closed

open

BASE MEMORY ADDRESS SELECTION

Address

JP4/1

JP4/2

D0000h

pins 2 & 3 closed

pins 2 & 3 closed



D4000h

pins 2 & 3 closed

pins 1 & 2 closed



D8000h

pins 1 & 2 closed

pins 2 & 3 closed



DC000h

pins 1 & 2 closed

pins 1 & 2 closed
