LCS-6941 Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit VESA
Size:	Full-length, full-height card
Hard drive supported:	Four IDE (AT) Interface drives
Floppy drives supported:	Four 360KB, 720KB, 1.2MB, 1.44MB drives

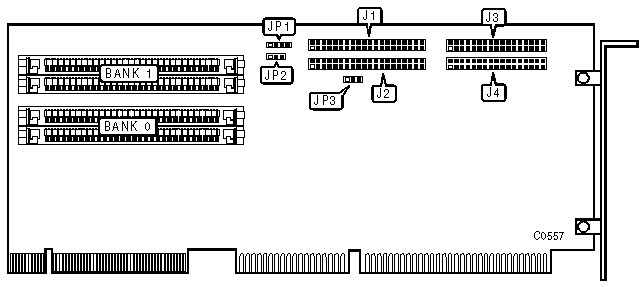

CONNECTIONS
Function	Location
40-pin IDE(AT) interface connector	J1
40-pin IDE(AT) interface connector	J2
34-pin data cable connector - floppy drive	J3
34-pin data cable connector - floppy drive	J4
4-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP2	open
»	Floppy drive interface enabled	JP3	pins 1 & 2 closed
	Floppy drive interface disabled	JP3	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(2)256K x 9	NONE
1MB	(2)256K x 9	(2)256K x 9
2MB	(2)1M x 9	NONE
4MB	(2)1M x 9	(2)1M x 9
8MB	(2)4M x 9	NONE
10MB	(2)4M x 9	(2)1M x 9
16MB	(2)4M x 9	(2)4M x 9
