DTC8260 Hard Disk/Floppy Controller Settings and Configuration

Card Type	Controller card
Processor	486
Processor Speed	Unidentified
Maximum Onboard Memory	32MB DRAM (EDO supported)
Hard Drives supported	Up to 14 SCSI, SCSI-2, or SCSI-2 Fast/Wide devices
Floppy drives supported	None
I/O Options	SCSI connector (3), LED connector, Manufacturing Diagnostic connector
Data Bus	32-bit PCI
Card Size	Half-length, full-height

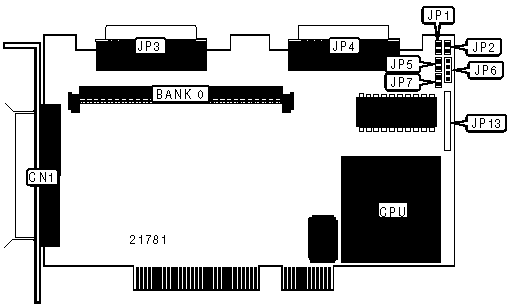

CONNECTIONS
Function	Location	Function	Location
68-pin SCSI connector - external	CN1	4-pin connector - drive active LED	JP6
68-pin SCSI connector A - internal	JP3	Manufacturing Diagnostic connector	JP13
68-pin SCSI connector B - internal	JP4

USER CONFIGURABLE SETTINGS
Function	Label	Position
í	JP1	Open
í	JP2	Open
í	JP5	Open
í	JP7	Open

DRAM CONFIGURATION
Size	Bank 0
2MB	512KB x 32
4MB	1MB x 32
8MB	2MB x 32
16MB	4MB x 32
32MB	8MB x 32
