CMS IDE HOST ADAPTER Hard Disk/Floppy Controller Settings and Configuration
CMS ENHANCEMENTS, INC.
CMS IDE HOST ADAPTER
Data bus: | 16-bit ISA |
Size: | Three-quarter length, full-height card |
Hard drive supported: | 2 IDE(AT) interface drives |
Floppy drives supported: | 360KB, 720KB, 1.2MB, 1.44MB |

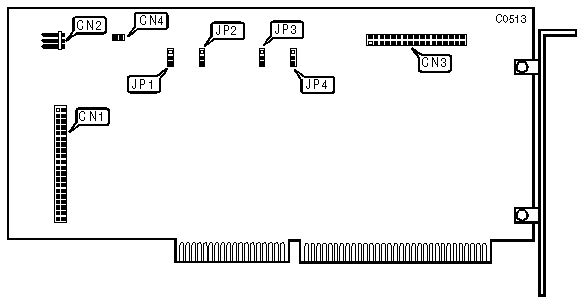

CONNECTIONS | |
Function | Location |
40-pin IDE(AT) interface connector | CN1 |
External power connector | CN2 |
34-pin control cable connector - floppy drive | CN3 |
External drive active LED connector | CN4 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Floppy drive interface primary address select(3Fxh) | JP1 | pins 1 & 2 closed |
Floppy drive interface alternate address select(37xh) | JP1 | pins 2 & 3 closed | |
| » | IDE(AT) interface primary address select(1Fxh) | JP2 | pins 1 & 2 closed |
IDE(AT) interface alternate address select(17xh) | JP2 | pins 2 & 3 closed | |
| » | Floppy drive interface disabled | JP3 | pins 1 & 2 closed |
Floppy drive interface enabled | JP3 | open | |
| » | IDE(AT) interface enabled | JP4 | pins 2 & 3 closed |
IDE(AT) interface disabled | JP4 | pins 1 & 2 closed | |
