V7 MERCURY LITE (PCI) video card Settings and Configuration
VIDEO SEVEN
V7 MERCURY LITE (PCI)
Category | Video |
Video Types Supported | XVGA |
Video Processor | S3 |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 32-bit PCI |
Memory Type | VRAM |
Maximum Onboard Memory | 1MB |

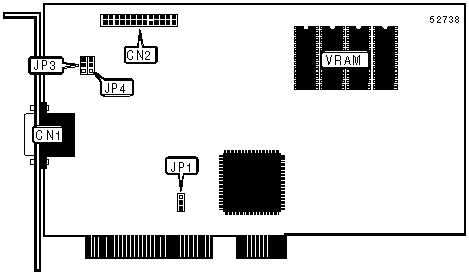

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VESA feature connector | CN2 |
PCI INTERRUPT SELECTION | ||
INTA | JP1 | |
| » | Disabled | Pins 1 & 2 closed |
Enabled | Pins 2 & 3 closed | |
ZERO WAIT STATE SELECTION | ||
Setting | JP3 | |
| » | 1 | Pins 1 & 2 closed |
0 | Pins 2 & 3 closed | |
VRAM CONFIGURATION | |
Size | VRAM |
1MB | (4) 256K x 8 |
FACTORY CONFIGURED JUMPERS | |
Jumper | Setting |
JP4 | N/A |
