V7 VGA 16 video card Settings and Configuration






VIDEO SEVEN

V7 VGA 16

Category

Video

Video Types Supported

VGA

Video Processor

Unidentified

Highest Resolution Supported

800 x 600

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

256KB

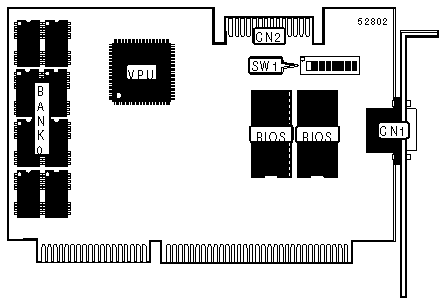

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA feature connector

CN2

FACTORY CONFIGURED SETTINGS

Switch

Setting

SW1/1

Off

SW1/2

Off

SW1/3

Off

SW1/4

Off

OLDER MODEL EMULATION

Setting

SW1/5

Enabled

On



Disabled

Off

8/16-BIT ROM SELECT

Setting

SW1/6

SW1/7

16-bit ROM

On

On



8-bit ROM

Off

Off

EXTENDED REGISTER ACCESS

Setting

SW1/8

Enabled

Off



Disabled (IBM VGA standard only)

On
