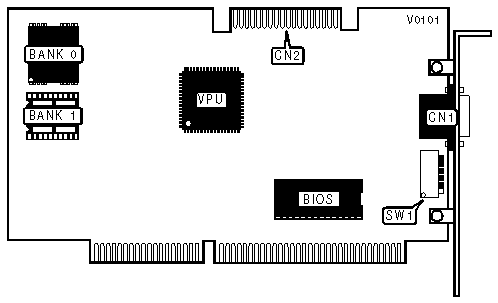

PVGA 1C video card Settings and Configuration






UNIDENTIFIED

PVGA 1C

Category

Video

Video Types Supported

XVGA

Video Processor

WD90C11

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

512KB

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

MONITOR TYPE CONFIGURATION

Type

SW1/1

Standard PS/2 or compatible

Off



Multi-frequency VGA

On

VGA CONFIGURATION

Mode

Type

SW1/2

SW1/6

PS/2

Color

On

Off



PC/AT or compatible

Monochrome

Off

On

800 X 600 REFRESH RATE SELECTION

Rate

SW1/3

SW1/4

56Hz

On

On

60Hz

On

Off

72Hz

Off

On

72Hz

Off

Off

1024 X 768 REFRESH MODE CONFIGURATION

Mode

SW1/5

Interlaced

Off

Non-interlaced

Off

DRAM CONFIGURATION

Size

Bank 0

Bank 1

256KB

(2) 44256

NONE

512KB

(2) 44256

(2) 44256








TOP
