PVGA 1024 CARD video card Settings and Configuration






UNIDENTIFIED

PVGA 1024 CARD

Category

Video

Video Types Supported

XVGA

Video Processor

Unidentified

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

512KB

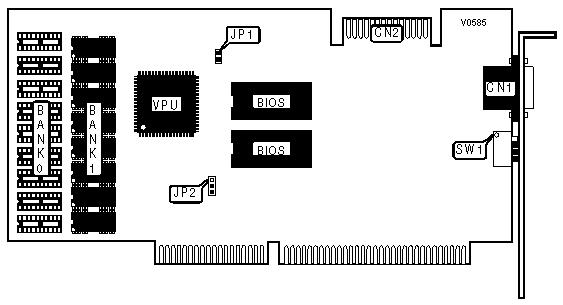

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

DISPLAY TYPE SELECT

Setting

SW1/1

PS/2 fixed frequency

Off



Multi frequency

On

VGA MODE SELECT

Setting

SW1/2

PS/2 all VGA modes

On



PC/AT Color/Monochrome

Off

FACTORY CONFIGURED SETTING

Switch

Setting

SW1/1

Off

BIOS BUS SELECT

Setting

SW1/4

Autodetect 16-bit BIOS

On



8-bit BIOS

Off

FEATURE CONNECTOR CLOCK SELECT

Setting

JP1

Enabled

Pins 1 & 2 closed



Disabled

Pins 2 & 3 closed

AUTODETECT SELECT

Setting

JP2

Autodetect enabled

Closed



16-bit BIOS

Open

Note:Do not set JP2 to 16-bit BIOS if you have not run the proprietary software 16Test. This software will check to see if your system can handle a 16-bit BIOS.

DRAM CONFIGURATION

Size

Bank 0

Bank 1

256KB

(9) 64K x 4

(9) 64K x 4

512KB

(9) 64K x 4

(9) 64K x 4
