EVGA 2146A video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	Tseng Labs ET4000
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

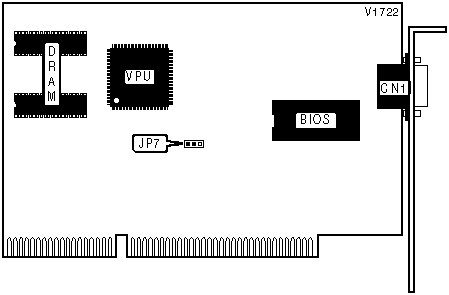

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

INTERRUPT
IRQ 2/9		JP7
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed
