EVGA 2146 video card Settings and Configuration
UNIDENTIFIED
EVGA 2146
Category | Video |
Video Types Supported | XVGA |
Video Processor | Tseng Labs ET4000 |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1MB |

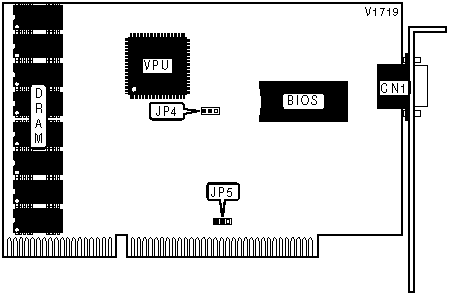

CONNECTIONS | |
Purpose | Location |
15-pin analog video port | CN1 |
INTERRUPT | ||
IRQ 2/9 | JP4 | |
| » | Disabled | Pins 2 & 3 closed |
Enabled | Pins 1 & 2 closed | |
TURBO DISPLAY MEMORY ACCESS | ||
Setting | JP5 | |
| » | Enabled | Pins 1 & 2 closed |
Disabled | Pins 2 & 3 closed | |
