VGA-CL30 video card Settings and Configuration
UNIDENTIFIED
VGA-CL30
Card Type | Video card |
Video Chip Set | Cirrus Logic |
Maximum Video Memory | 2MB DRAM |
Video Types Supported | VGA |
Highest Resolution Supported | 1280 x 1024 |
Data Bus | 32-bit PCI |
CONNECTIONS | |||
Function | Label | Function | Label |

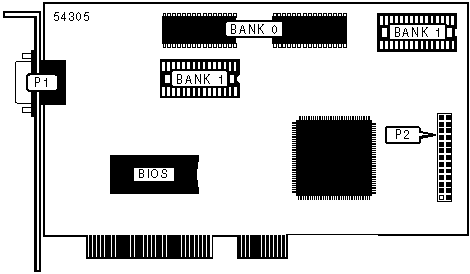

15-pin analog video port | P1 | Feature connector | P2 |
VIDEO MEMORY CONFIGURATION (DRAM) | ||
Size | Bank 0 | Bank 1 |
1MB | (2) 256KB | None |
2MB | (2) 256KB | (2) 256KB |
