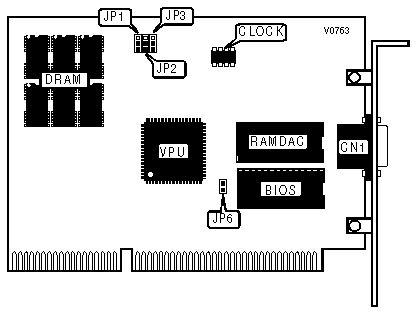

VGA ADAPTER 512K video card Settings and Configuration
UNIDENTIFIED
VGA ADAPTER 512K
Category | Video |
Video Types Supported | VGA |
Video Processor | Unidentified |
Highest Resolution Supported | Unidentified |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 512KB |
CONNECTIONS | |
Purpose | Location |
15-pin analog video port | CN1 |
INTERRUPT IRQ2 SELECT | ||
Setting | JP6 | |
| » | Disabled | Open |
Enabled | Closed | |
CLOCK SELECT | ||
Setting | JP3 | |
| » | Super VGA | Open |
Extended video | Closed | |
CLOCK CHIP SELECT | ||||
UMC | AVASEM | STARTEC | JP1 | JP2 |
50Mhz | 70Mhz | 50Mhz | Pins 1 & 2 closed | Pins 1 & 2 closed |
40Mhz | 65Mhz | 44.9Mhz | Pins 1 & 2 closed | Pins 2 & 3 closed |
36Mhz | 60Mhz | 40Mhz | Pins 2 & 3 closed | Pins 1 & 2 closed |
32Mhz | 50Mhz | 32Mhz | Pins 2 & 3 closed | Pins 2 & 3 closed |
