P60 video card Settings and Configuration






UNIDENTIFIED

P60

Card Type

Video card

Video Chip Set

S3

Maximum Video Memory

2MB DRAM

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

32-bit PCI

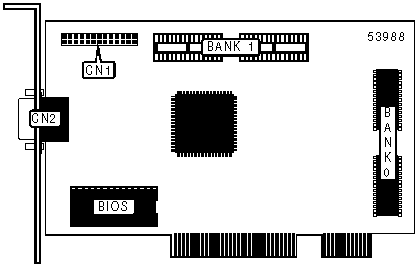

CONNECTIONS

Function

Label

Function

Label

Feature connector

CN1

15-pin analog video port

CN2

VIDEO MEMORY CONFIGURATION (DRAM)

Size

Bank 0

Bank 1

1MB

(2) 256KB x 16

None

2MB

(2) 256KB x 16

(2) 256KB x 16
