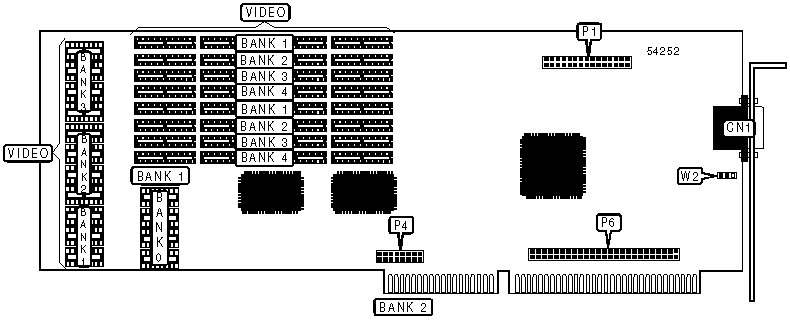

GPX-1024 video card Settings and Configuration






UNIDENTIFIED

GPX-1024

Card Type

Video card

Video Chip Set

Texas Instruments

Maximum Video Memory

1MB

Video Types Supported

VGA

Highest Resolution Supported

1024 x 768

Data Bus

16-bit ISA

CONNECTIONS

Function

Label

Function

Label

15-pin video analog video port

CN1

Daughter card connector

P6

Daughter card connector

P1



USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

P4

Unidentified

Factory configured - do not alter

W2

Pins 2 & 3 closed

VIDEO MEMORY CONFIGURATION

Note: Board comes standard with 512KB of VRAM video memory & and is upgradeable to 1MB video memory. Board has 128KB of DRAM video memory & is upgradeable to 512KB video memory. The location & chip sizes are unidentified.
