80 DATA video card Settings and Configuration
UNIDENTIFIED
80 DATA
Category | Video |
Video Types Supported | VGA |
Video Processor | Unidentified |
Highest Resolution Supported | 800 X 600 |
Data Bus Type | 8-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 256KB |

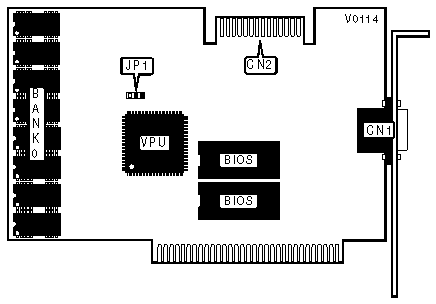

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
FACTORY CONFIGURED - DO NOT ALTER | |
Switch | Position |
SW1/3 | Off |
SW1/4 | Off |
FEATURE CONNECTOR CONFIGURATION | ||
Setting | JP1 | |
| » | Disabled | Pins 1 & 2 closed |
Enabled | Pins 2 & 3 closed | |
TIMING SELECTION | ||
Timing | SW1/1 | |
| » | Standard VGA timing | Off |
Special timing for multi-frequency monitors | On | |
VGA MODE SELECTION | ||
Mode | SW1/2 | |
| » | PS/2 style | On |
PC/AT style | Off | |
