5422 VGA video card Settings and Configuration

Card Type	Video card
Video Chip Set	Cirrus Logic
Maximum Video Memory	1MB DRAM
Video Types Supported	VGA
Highest Resolution Supported	1280 x 1024
Data Bus	16-bit ISA

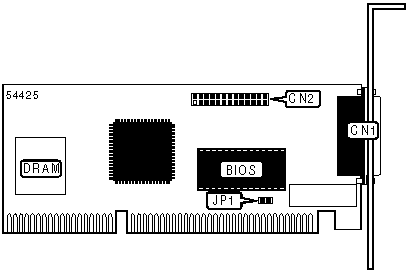

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature Connector	CN2

WAIT STATE SELECTION
Setting	JP1
0	Open
1	Closed
