M/C/V/P CARD video card Settings and Configuration
UNIDENTIFIED
M/C/V/P CARD
Category | Video |
Video Types Supported | MGA |
Video Processor | Unidentified |
Highest Resolution Supported | 720 x 348 |
Data Bus Type | 8-bit ISA |
Memory Type | Unidentified |
Maximum Onboard Memory | Unidentified |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Parallel port | CN1 | RCA composite connector | CN3 |
15-pin Video port | CN2 | ||

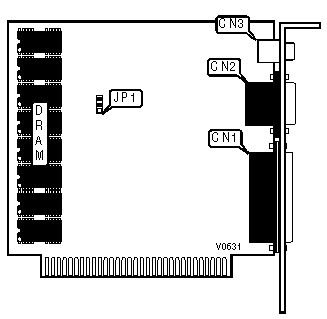

PARALLEL PORT 1 CONFIGURATION | |
Setting | JP1 |
378h, color mode | Pins 1 & 2 closed |
3BCh, mono mode | Pins 2 & 3 closed |
3BCh, Dual Display | All open |
