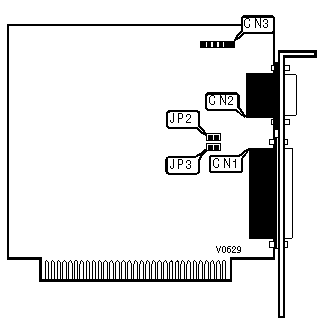

MGP TM6066A video card Settings and Configuration
UNIDENTIFIED
MGP TM6066A
Category | Video |
Video Types Supported | MDA |
Video Processor | Unidentified |
Highest Resolution Supported | 720 x 348 |
Data Bus Type | 8-bit ISA |
Memory Type | Unidentified |
Maximum Onboard Memory | Unidentified |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Parallel port | CN1 | 6-pin light pen port | CN3 |
15-pin Video port | CN2 | ||
USER CONFIGURABLE SETTINGS | ||
Purpose | Jumper | Setting |
Printer port disable | JP3 | Closed |
Printer port enable | JP3 | Open |
Character Generator 2764 | JP4 | Closed |
Character Generator 23C01 | JP4 | Open |
