PARADISE OEM 6 EGA video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	640 x 480
Maximum Video Memory	256KB DRAM (location unidentified)
Data Bus	8-bit ISA
Video Types Supported	EGA/CGA

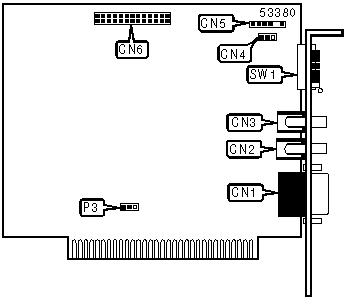

CONNECTIONS
Function	Label	Function	Label
9-pin analog video connector	CN1	Light pen connector	CN5
RCA connector	CN2	Feature connector	CN6
RCA connector	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	480 Line modes supported	CN4	Pin 1-2
	Feature connector accessories supported	CN4	Pin 2-3
»	I/O Address 3xxH	P3	Pin 2-3
	I/O Address 2xxH	P3	Pin 1-2

DISPLAY CONFIGURATION (OEM 6 EGA PRIMARY)
Primary	Secondary	SW1/1	SW1/2	SW1/3	SW1/4
Monochrome	Color, 80x25	Off	Off	On	Off
Monochrome	Color, 40x25	On	Off	On	Off
Color	Monochrome	On	Off	Off	On
Color	Monochrome	Off	Off	Off	On
Enhanced	Monochrome	On	On	On	Off
Enhanced	Monochrome	Off	On	On	Off

DISPLAY CONFIGURATION (OEM 6 EGA SECONDARY)
Primary	Secondary	SW1/1	SW1/2	SW1/3	SW1/4
Color	Monochrome	On	On	On	On
Color	Monochrome	Off	On	On	On
Enhanced	Monochrome	On	Off	On	On
Enhanced	Monochrome	Off	Off	On	On
Monochrome	Color, 40x25	On	On	Off	On
Monochrome	Color, 80x25	Off	On	Off	On

DISPLAY SELECTION (AUTO SWITCH)
Autoswitch Option	SW1/5
Disabled	Open
Enabled	Closed
