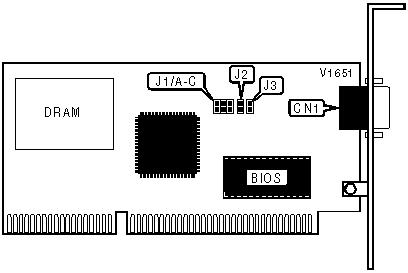

JAX8237 (TVGA9000I)/JAX8216 (TVGA 9000) video card Settings and Configuration

Card Type	Video card
Video Chip Set	Trident
Highest Resolution Supported	1024 x 768
Maximum Video Memory	512KB DRAM
Data Bus	16-bit ISA
Video Types Supported	XVGA

CONNECTIONS
Function	Label
15-pin analog video port	CN1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Scan rate normal	J2	Closed
	Scan rate high	J2	Open
»	BIOS Autodetect enabled	J3	Open
	BIOS Autodetect disabled	J3	Closed

BUS SIZE CONFIGURATION
Size	J1/A	J1/B	J1/C
8-bit	Closed	Closed	Closed
16-bit	Open	Open	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(2) 256KB x 4	None
512KB	(2) 256KB x 4	(2) 256KB x 4
Note: The exact locations of Bank 0 and Bank 1 are unidentified.
