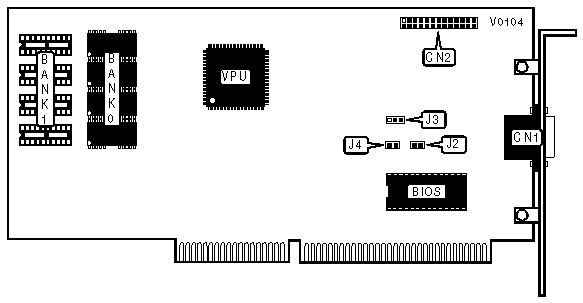

JAX-8212 video card Settings and Configuration
JATON CORPORATION
JAX-8212
Category | Video |
Video Types Supported | XVGA |
Video Processor | 8900C |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 512KB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
SCAN RATE SELECTION | ||
Rate | J2 | |
| » | Default scan rate | Closed |
48.7Khz | Open | |
BUS SIZE DETECT CONFIGURATION | ||
Setting | J4 | |
| » | Autodetect | Open |
Standard interface | Closed | |
FACTORY CONFIGURED - DO NOT ALTER | |
Jumper | Position |
J3 | Pins 1 & 2 closed |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
256KB | (2) 41256 | None |
512KB | (2) 41256 | (2) 41256 |
