WG-5000 video card Settings and Configuration
DIAMOND FLOWER, INC.
WG-5000
Category | Video |
Video Types Supported | XVGA |
Video Processor | ET4000/W32 |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 2048KB |
CONNECTIONS | |
Purpose | Location |

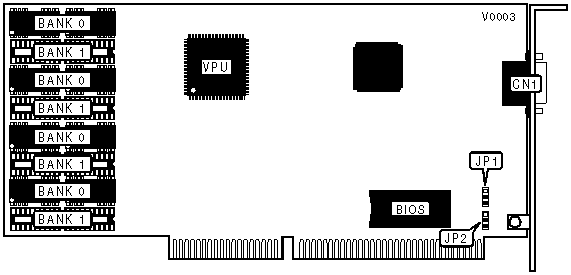

15-pin analog video port | CN1 |
ZERO WAIT STATE SELECTION | |
Setting | JP1 |
Enabled | Pins 1 & 2 closed |
Disabled | Pins 2 & 3 closed |
VIDEO INTERRUPT SELECTION | ||
IRQ9 | JP2 | |
| » | Disabled | Pins 2 & 3 closed |
Enabled | Pins 1 & 2 closed | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1024KB | (8) 44256 | NONE |
2048KB | (8) 44256 | (8) 44256 |
Note:Board comes standard with 1024KB, 2048KB upgrade may have to be soldered on. | ||
