MG-160N video card Settings and Configuration
DIAMOND FLOWER, INC.

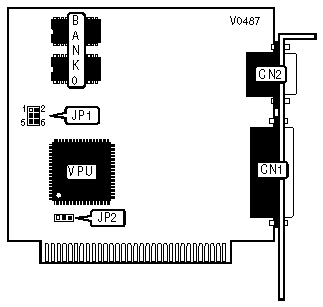

MG-160N
Card Type | Parallel printer controller, graphics card |
Chipset/Controller | Unidentified |
I/O Options | Parallel, video ports |
Maximum DRAM | 64KB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Parallel port | CN1 | 15-pin analog video port | CN2 |
PARALLEL PORT (CN1) CONFIGURATION | |||
LPT/Address/IRQ | JP1 | JP2 | |
| » | LPT1/3BCh/IRQ7 | pins 2 & 4, 3 & 5 closed | pins 2 & 3 closed |
LPT1/38Ch/IRQ5 | pins 2 & 4, 3 & 5 closed | pins 1 & 2 closed | |
LPT2/378h/IRQ5 | pins 1 & 3, 4 & 6 closed | pins 1 & 2 closed | |
LPT2/378h/IRQ7 | pins 1 & 3, 4 & 6 closed | pins 2 & 3 closed | |
LPT3/278h/IRQ5 | pins 1 & 3, 2 & 4 closed | pins 1 & 2 closed | |
LPT3/278h/IRQ7 | pins 1 & 3, 2 & 4 closed | pins 2 & 3 closed | |
Disabled | pins 3 & 5, 4 & 6 closed | N/A | |
