VG-2000 video card Settings and Configuration
DIAMOND FLOWER, INC.
VG-2000
Category | Video |
Video Types Supported | Monochrome/XVGA |
Video Processor | 8900C |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 512KB |

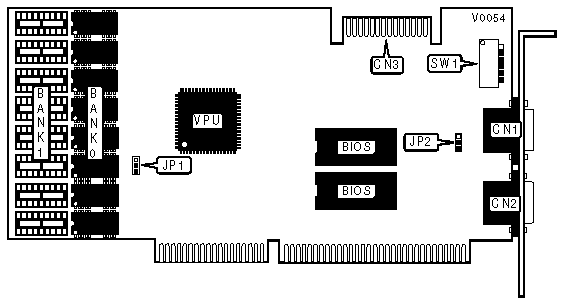

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
9-pin analog video port | CN1 | VGA feature connector | CN3 |
15-pin analog video port | CN2 | ||
BIOS BUS TRANSFER SELECTION | ||
Mode | JP1 | |
| » | 8-bit | Pins 1 & 2 closed |
Autosense | Pins 2 & 3 closed | |
VIDEO DISPLAY SELECTION | ||
Setting | JP2 | |
| » | Color display for Multisync TTL or analog monitors | Pins 2 & 3 closed |
Monochrome display for Multisync TTL monitors | Pins 1 & 2 closed | |
DISPLAY TYPE SELECTION | |||||||
Type | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | |
| » | PS/2 or Multisync | On | On | On | On | On | On |
Multisync digital | Off | Off | Off | Off | Off | Off | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
256KB | (8) 256K x 1 | None |
512KB | (8) 256K x 1 | (8) 256K x 1 |
