GL-2228 video card Settings and Configuration
CHAINTECH COMPUTER COMPANY, LTD.
GL-2228
Category | Video |
Video Types Supported | XVGA |
Video Processor | ALG2228 |
Highest Resolution Supported | Unidentified |
Data Bus Type | 32-bit VESA Local Bus |
Memory Type | DRAM |
Maximum Onboard Memory | 1MB |

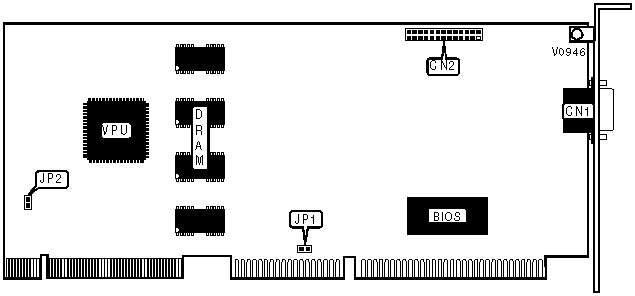

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
SYSTEM CLOCK SELECTION | ||
Setting | JP1 | |
» | > 40MHz | Open |
| £ 33/40MHz | Closed |
INTERRUPT SELECTION | ||
IRQ 9 | JP2 | |
» | Disabled | Open |
| Enabled | Closed |
