AVGA3-542X-VLB video card Settings and Configuration
CHAINTECH COMPUTER COMPANY, LTD.
AVGA3-542X-VLB
Category | Video |
Video Types Supported | XVGA |
Video Processor | Cirrus Logic CL542X |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 32-bit VESA Local Bus |
Memory Type | DRAM |
Maximum Onboard Memory | 2MB |

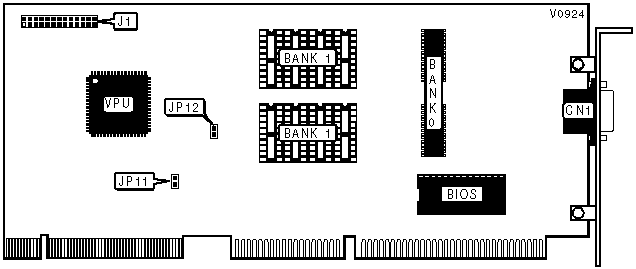

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | J1 |
DAC CONFIGURATION | ||
| Setting | JP12 | |
| » | Enabled | Open |
| Disabled | Closed | |
INTERRUPT SELECTION | ||
| IRQ 9 | JP11 | |
| » | Enabled | Closed |
| Disabled | Open | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (2) 512 x 8 | NONE |
2MB | (2) 512 x 8 | (8) 256 x 4 |
