WARPSPEED GRAPHICS DISPLAY ADAPTER VGA256 video card Settings and Configuration
CARDINAL TECHNOLOGIES, INC.
WARPSPEED GRAPHICS DISPLAY ADAPTER VGA256
Card Type | Video card |
Video Chip Set | Weitek |
Highest Resolution Supported | 1280 x 1024 |
Maximum Video Memory | 2MB VRAM (location unidentified) |
Data Bus | 32-bit VESA Local Bus |
Video Types Supported | XVGA |
CONNECTIONS | |
Function | Label |

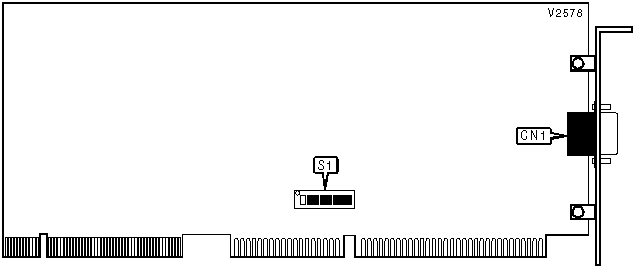

15-pin analog video port | CN1 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | 16-bit memory accesses to frame buffer | S1/1 | Off |
8-bit memory accesses to frame buffer (for monochrome cards) | S1/1 | On | |
| » | W5186 interrupt signal not connected to ISA bus | S1/2 | Off |
W5186 interrupt signal is connected to ISA bus | S1/2 | On | |
| » | Zero wait state enabled | S1/3 | On |
Zero wait state disabled | S1/3 | Off | |
| » | 16-bit BIOS ROM selected | S1/4 | On |
8-bit BIOS ROM selected | S1/4 | Off | |
| » | Setting if S1/1 is Off | S1/5 | On |
Setting if S1/1 is On | S1/5 | Off | |
| » | Factory configured - do not alter | S1/8 | N/A |
BASE I/O ADDRESS SELECTION | |||
Setting | S1/6 | S1/7 | |
| » | C000h | On | On |
D000h | On | Off | |
E000h | Off | On | |
F000h | Off | Off | |
