PCI-V264CT video card Settings and Configuration

ASUS COMPUTER INTERNATIONAL

PCI-V264CT

Card Type
Video card
Video Chip Set
ATI Mach64 264CT
Highest Resolution Supported
1280 x 1024
Maximum Video Memory
2MB DRAM
Data Bus
32-bit PCI
Video Types Supported
XVGA

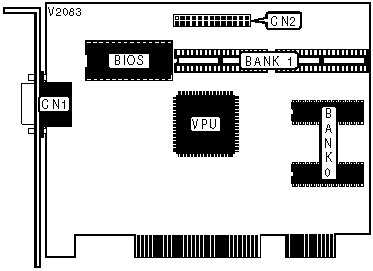

CONNECTIONS
Function
Label
Function
Label
15-pin analog video port
CN1
Feature connector
CN2

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(2) 256K x 16
None
2MB
(2) 256K x 16
(2) 256K x 16
