PCI-AV868 video card Settings and Configuration
ASUS COMPUTER INTERNATIONAL
PCI-AV868
Category | Video/Sound |
Video Types Supported | XVGA |
Video Processor | S3 - 868 |
Highest Resolution Supported | 1600 x 1200 |
Data Bus Type | 32-bit PCI & proprietary Media Bus |
Memory Type | DRAM |
Maximum Onboard Memory | 2MB |

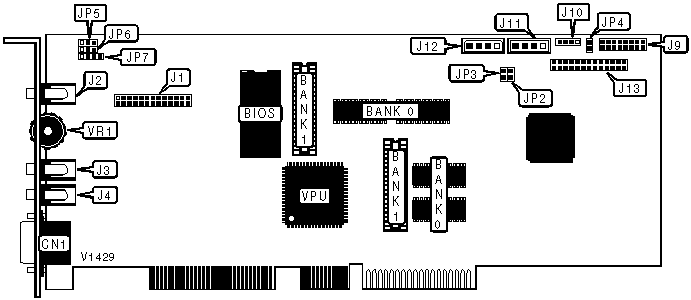

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | Mitsumi CD - audio in | J11 |
VGA feature connector | J1 | Panasonic CD - audio in | J12 |
Line out | J2 | Wavetable interface | J13 |
Mic in | J3 | PC speaker in | JP4 |
Line in | J4 | 4-pin audio connector | JP7 |
16-pin game port initerface | J9 | Volume | VR1 |
Sony CD - audio in | J10 | ||
AUDIO BASE ADDRESS SELECTION | ||
Address | JP2 | JP3 |
220h - 233h | Closed | Closed |
240h - 253h | Closed | Open |
260h - 273h | Open | Closed |
280h - 293h | Open | Open |
AUDIO OUTPUT SELECTION | ||
Setting | JP5 | JP6 |
Line out | Pins 1 & 2 closed | Pins 1 & 2 closed |
Speaker out | Pins 2 & 3 closed | Pins 2 & 3 closed |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (4) 256K x 8 | NONE |
2MB | (4) 256K x 8 | (2) 256K x 16 |
