RENDITION IV video card Settings and Configuration

Card type	Video card
Video Chip Set	Texas Instruments
Highest Resolution Supported	1024 x 768
Maximum Video Memory	4MB DRAM
Data Bus	16-bit ISA
Video Types Supported	XVGA

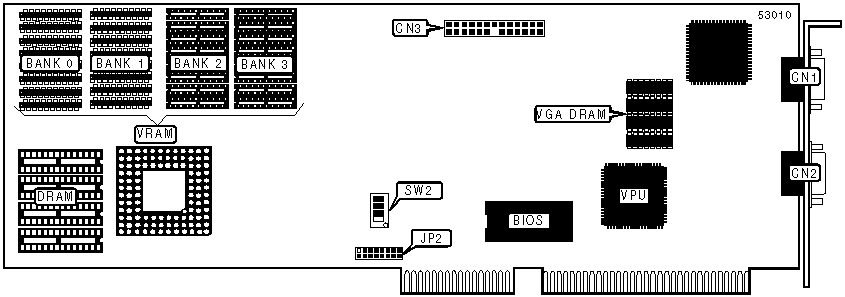

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	15-pin analog video port	CN2
Pass through connector	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	On-board VGA enabled	SW2/1	On
	On-board VGA disabled	SW2/1	Off
»	Factory configured - do not alter	SW2/2	On

VIDEO MEMORY CONFIGURATION (DRAM/VRAM)

Note: Memory configuration is unidentified, however the Rendition IV accepts up 4MB of VRAM or 4MB of DRAM.

I/O ADDRESS SELECTION
Setting	SW2/3	SW2/4
280h - 28Fh, 680h - 68Fh	Off	Off
290h - 29Fh, 690h - 69Fh	On	Off
2A0h - 2AFh, 6A0h - 6AFh	Off	On
2B0h - 2BFh, 6B0h - 6BFh	On	On

IRQ SELECTION
IRQ	JP2/1	JP2/2	JP2/3	JP2/4	JP2/5	JP2/6	JP2/7	JP2/8
2/9	Closed	Open	Open	Open	Open	Open	Open	Open
3	Open	Closed	Open	Open	Open	Open	Open	Open
4	Open	Open	Closed	Open	Open	Open	Open	Open
5	Open	Open	Open	Closed	Open	Open	Open	Open
10	Open	Open	Open	Open	Closed	Open	Open	Open
11	Open	Open	Open	Open	Open	Closed	Open	Open
12	Open	Open	Open	Open	Open	Open	Closed	Open
15	Open	Open	Open	Open	Open	Open	Open	Closed
