TELEVIEWER X3D video card Settings and Configuration

Card Type	Video capture board
Video Chip Set	Unidentified
Maximum Video Memory	Unidentified
Video Types Supported	VGA
Highest Resolution Supported	Unidentified
Data Bus	32-bit PCI

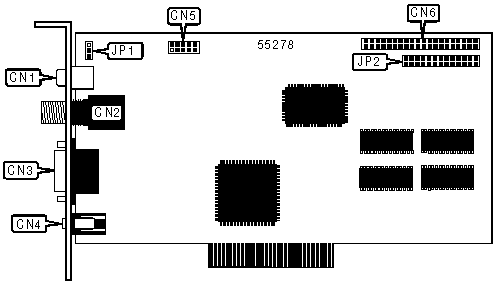

CONNECTIONS
Function	Label	Function	Label
Speaker out	CN1	TV/VCR out	CN4
Antenna	CN2	Secondary connector array	CN5
VGA connector	CN3	Infra-red detector	CN6

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified

DRAM CONFIGURATION
Note:	Memory configuration is unidentified
