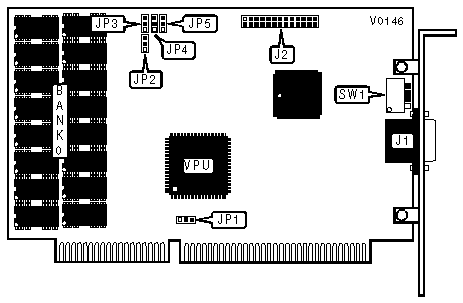

GRAPHICS ENGINE 32PLUS/2MB video card Settings and Configuration






ACTIX SYSTEMS, INC.

GRAPHICS ENGINE 32PLUS/2MB

Category

Video

Video Types Supported

XVGA

Video Processor

S3 86C801

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

2048KB

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

J1

VESA Feature connector

J2

INTERRUPT CONFIGURATION

IRQ 2/9

JP1

Disabled

Pins 2 & 3 closed



Enabled

Pins 1 & 2 closed

MONITOR TYPE SELECTION

Type

Refresh/1280 x 1024

SW1/1

SW1/2

VGA, Super VGA

N/A

Off

Off



Multisync, 48KHz

N/A

Off

On



Multisync, 57KHz

43.5Hz

On

Off



Multisync, 64KHz

60Hz

On

On

TURBO MODE CONFIGURATION

Setting

SW1/3

Disabled

Off



Enabled

On

BUS WIDTH SELECTION

Setting

SW1/4

8-bit

On



16-bit

Off

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

JP2

Pins 1 & 2 closed

JP3

Pins 1 & 2 closed

JP4

Pins 1 & 2 closed

JP5

Pins 1 & 2 closed
