GRAPHICS ENGINE 32/32 PLUS video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	S3 86C801
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	2MB

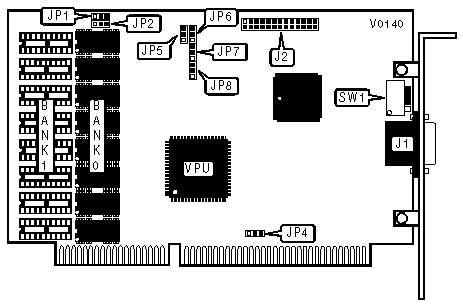

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	J1	VGA feature connector	J2

INTERRUPT CONFIGURATION
IRQ 2/9		JP4
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

MONITOR TYPE SELECTION
Type		Resolution	Refresh	SW1/1	SW1/2
»	VGA, Super VGA	1024 x 768	43.5Hz	Off	Off
	VGA, Super VGA	1280 x 1024	N/A	Off	Off
	Multisync, 38KHz	1024 x 768	43.5Hz	Off	On
	Multisync, 48KHz	1024 x 768	60Hz	On	Off
	Multisync, 57KHz	1024 x 768	72Hz	On	On
	Multisync, 48KHz	1280 x 1024	N/A	Off	On
	Multisync, 57KHz	1280 x 1024	43.5Hz	On	Off
	Multisync, 64KHz	1280 x 1024	60Hz	On	On
Note: 1280 x 1024 resolution is only available on the Graphics Engine 32plus.

TURBO MODE CONFIGURATION
Setting		SW1/3
»	Disabled	Off
	Enabled	On

BUS WIDTH SELECTION
Setting		SW1/4
»	8-bit	On
	16-bit	Off

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP2	Pins 1 & 2 closed
JP5	Pins 1 & 2 closed
JP6	Pins 1 & 2 closed
JP7	Pins 1 & 2 closed
JP8	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	JP1
1MB	(8) 44256	None	Pins 1 & 2 closed
2MB	(8) 44256	(8) 44256	Pins 2 & 3 closed
