WINARTIST (PV60) video card Settings and Configuration
ACER
WINARTIST (PV60)
Card Type | Video card |
Video Chip Set | S3 |
Maximum Video Memory | 2MB DRAM |
Video Types Supported | Unidentified |
Highest Resolution Supported | 1280 x 1024 |
Data Bus | 32-bit PCI |

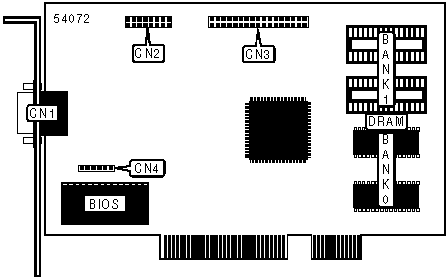

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | 34-pin LPB daughterboard connector | CN3 |
16-pin LPB daughterboard connector | CN2 | 6-pin daughterboard connector | CN4 |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (2) 512KB | None |
2MB | (2) 512KB | (2) 512KB |
Card Type | MPEG decoder daughtercard |
Video Chip Set | S3 |
Maximum Video Memory | 256 x 16KB DRAM |

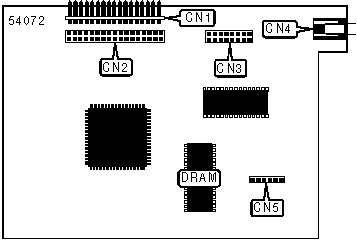

CONNECTIONS | |||
Function | Label | Function | Label |
34-pin LPB feature connector | CN1 | Audio jack | CN4 |
34-pin LPB female daughterboard connector | CN2 | 6-pin female daughterboard connector | CN5 |
16-pin LPB female daughterboard connector | CN3 | ||
