5434/5430 video card Settings and Configuration

ACER OPEN

5434/5430

Category
Video
Video Types Supported
XVGA
Video Processor
Cirrus Logic 5434/5430
Highest Resolution Supported
1280 x 1024
Data Bus Type
32-bit PCI
Memory Type
DRAM
Maximum Onboard Memory
2MB

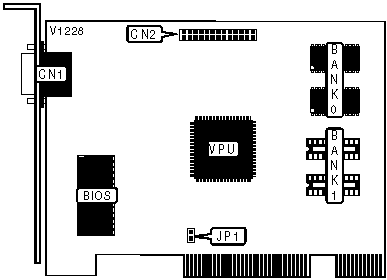

CONNECTIONS
Purpose
Location
Purpose
Location
15-pin analog video port
CN1
VGA feature connector
CN2

INTERRUPT CONFIGURATION
IRQ 2/9
JP1
»
Disabled
Open

Enabled
Closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(2) 1024K x 4
None
2MB
(2) 1024K x 4
(2) 1024K x 4
